Amal Carb

Amal Carburettors & Amal Carb Parts

Amal Carburettors have been regular race winners since the earliest days of motorcycling-and they keep on winning, year in year out.

If your bike is fitted with one or more Amal carburettors and has seen a lot of mileage on the street, trail or dirt- you’ll find that refitting with an all-new Amal carburetion system will bring that sharp ‘new machine’ performance you first experienced your first time out of your dealers showroom.

Amal carburettors were originally made by Amal ltd, Holford Rd, Witton, Birmingham.

Amal Carburettors In Stock!

Availability of Amal Carbs is sometimes poor, however as with all products at Burton Bike Bits, we stock large quantities and so can usually supply carbs when other companies are waiting for new stocks! We carry a full range, but don’t have all of them listed on our website, so if there is anything you can’t find, please contact us!

Buy Amal Carburetters here

Fitted to BSA, Norton, Triumph and Royal Enfields amongst others

Solex Carburetters also Available

Air Filter Assemblies also Available

Petrol Tank Taps and Petrol Pipe also Available



Amal 276 Pre-monobloc Carburetters

Amal 276 Carb

Amal 363 Carburetters

Amal 363 Carb Exploded View



Amal Monobloc Carburetters

Amal Monobloc carb exploded viewThe “Monobloc” design replaced the 274,275 & 276 series carbs and were fitted to various British and European motorcycles

The Monobloc carbs have calibrated jets. Easy starting, slow running, acceleration flexibilty, power and economy are all obtainable because of the design and also, because the carburetter is so simple to tune up by the owner.

Amal  Monobloc 376 Carburetters

Amal Monobloc Carb 376/16 1'
AM/376/15Amal Monobloc Carb 15/16″
AM/376/16Amal Monobloc Carb 1″

Buy Online

AM/376/17Amal Monobloc Carb 1.1/16″
AM/376/27Amal Monobloc Carb 1.1/16″ (Chopped Float Bowl)





Amal Monobloc 389 Carburetters

Amal 389 Monobloc carb
AM/389/18Amal Monobloc Carb 1.1/8″

Buy Online

AM/389/18.5Amal Monobloc Carb1.5/32″
AM/389/19Amal Monobloc Carb 1.3/16″

Amal 600 MKI Concentric (4 Stroke) Carburetters

AM/R622/300CARB COMPLETE, R/H, 4 STROKE 22mm

Buy Online

AM/L622/301CARB COMPLETE, L/H, 4 STROKE 22mm
AM/R624/300CARB COMPLETE, R/H, 4 STROKE 24mm
AM/R624/301CARB COMPLETE, R/H, 4 STROKE 24mm
AM/R624/300PREMCARB COMPLETE, L/H, 4 STROKE 24mm

Buy Online

AM/R624/301PREMCARB COMPLETE, L/H, 4 STROKE 24mm
AM/R626/300CARB COMPLETE, R/H, 4 STROKE 26mm

Buy Online

AM/R626/301CARB COMPLETE, L/H, 4 STROKE 26mm

Buy Online

626/300PREMPREMIER RANGE CARB COMPLETE, R/H, 4 STROKE 26mm

Buy Online

626/301PREMPREMIER RANGE CARB COMPLETE, L/H, 4 STROKE 26mm

Buy Online

626/12CARB COMPLETE, 2 STROKE, BSA BANTAM D14

Buy Online

626/66CARB COMPLETE, R/H TRIPLES

Buy Online

626/67CARB COMPLETE, L/H TRIPLES

Buy Online

Amal 900 MKI Concentric (4 Stroke) Carburetters

The Mark 1 series of carburetters was introduced in 1967, offering bore sizes from 22mm through to 32mm.

The versatile design offered left and right hand positioning to improve access to adjustment, and became available in discreet 2-stroke and 4-stroke configurations.

The concentric arrangement of the float bowl around the main jet removed the sensitivity to fuel surge of earlier carbs while the design of the slide and throat optimised air velocity.

In addition to being universally adopted by British manufacturers, it was widely fitted to Spanish motorcycles and offered as a superior replacement for all previous Amal carbs including the GP racing carb.

AM/R928/300CARB COMPLETE, R/H, 4 STROKE 28mm
AM/L928/301CARB COMPLETE, L/H, 4 STROKE 28mm
928/300PREMAMAL PREMIER CARB COMPLETE, R/H, 4 STROKE 28mm

Buy Online

928/301PREMCARB COMPLETE, L/H, 4 STROKE 28mm

Buy Online

AM/R930/300CARB COMPLETE, R/H, 4 STROKE 30mm

Buy Online

AM/R930/301CARB COMPLETE, L/H, 4 STROKE 30mm

Buy Online

AM/R930/300PREMAMAL PREMIER CARB COMPLETE, R/H, 4 STROKE 30mm

Buy Online

AM/R930/301PREMAMAL PREMIER CARB COMPLETE, L/H, 4 STROKE 30mm

Buy Online

AM/R932/300PREMAMAL PREMIER CARB COMPLETE, R/H, 4 STROKE 32mm

Buy Online

AM/R932/301PREMAMAL PREMIER CARB COMPLETE, L/H, 4 STROKE 32mm

Buy Online

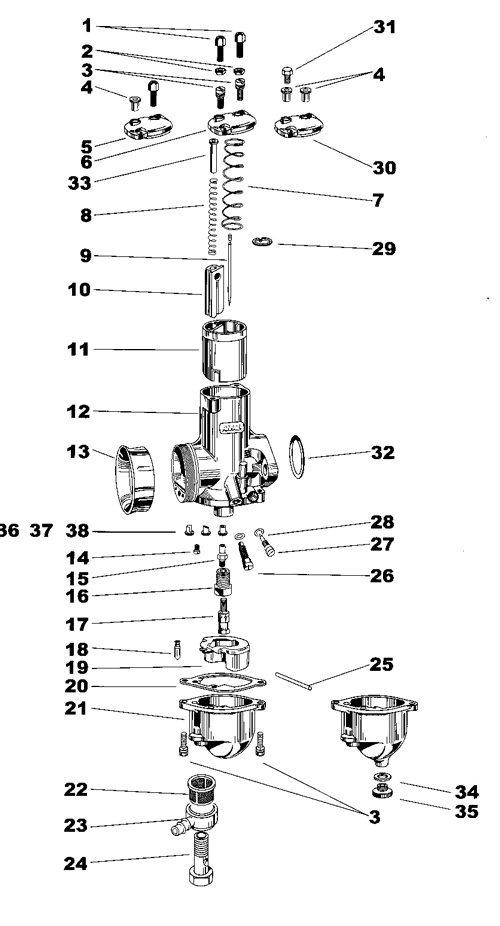

Exploded View of the Amal MKI Concentric (Click to Enlarge)

Amal MKII Concentric Carburetters

Amal Mk2 Concentric Carb
AM/2930/300Amal MKII Concentric R/H, 30MM

Buy Online

AM/2930/301Amal MKII Concentric  L/H, 30MM

Buy Online



Wassell 6 & 9 Series Carburetters

New for 2012. Wassell carbs are a direct replacement so there is no need to replace any of the order carb related parts.

Why choose a Wassell carb?

  • Fitted as standard with adjustable ethanol resistant puncture proof floats!
  • High quality “Passivated” corrosion resistant retro finish.
  • Component parts are fully interchangeable with OEM Carbs
  • All carbs have been fully tested alongside OEM Carbs and under identical conditions, running characteristics and calibration of fuel flow rates were found to be identical.

Buy Online Now





Amal Junction Boxes

Part #Description
244/104For twin cable control, Amal no. 244/104 nylon.
This junction box is used on machines which have two separate carburettors.
Single cable entry from twistgrip or air lever and two cable outlets for twin carburettors.
244/2080For triple cable control, Amal no. 244/2080 nylon.
This junction box is used on machines which have three separate carburettors.
Single cable entry from twistgrip or air lever and three cable outlets for three carburettors.

Viton Needle

The New ‘Viton’ rubber tipped float needle fits all Amal Concentic and Monobloc Carbs.

It has been specifically designed to help in overcoming carburettor flooding problems of all kinds – notably those caused by dirt or wear after prolonged usage.

The rubber tip of every float needle is precision ground to provide a truly conical surface for perfect sealing and is unaffected by all normal gasoline type fuels.

Amal Part #  622/197



Amal Carb Service Kits



Part NumberDescriptionPicture
(Click To Enlarge)

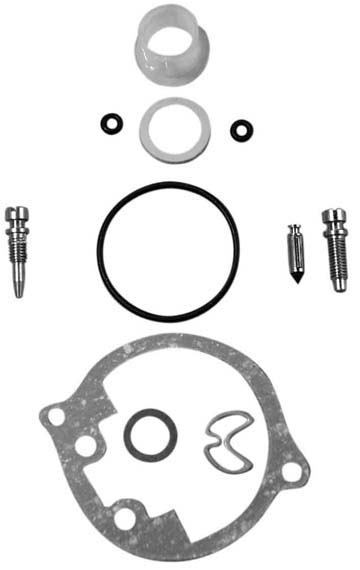

622/238Overhaul and maintenance kit for MK1 Concentric, 600 & 900 SeriesContains: 376/093, 622/067, 622/073, 622/073, 622/076, 622/077, 622/082, 622/101, 622/151, 622/197 & 13/136.

Buy Online

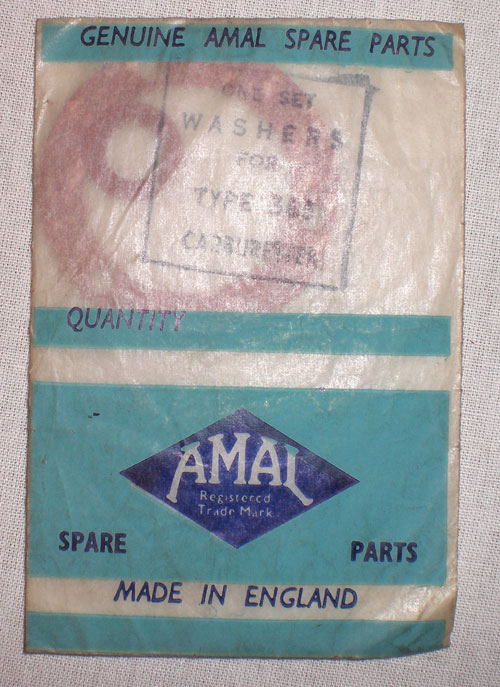

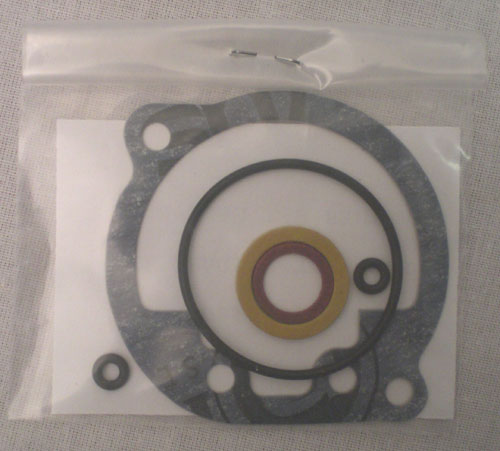

Amal Carb Gasket Sets

Part #

Description

363/208

For Amal 363 type carburettors

276/208

For Amal 276/29 type carburettors

375/208

For Amal 375 Monobloc series. Packaged set of gaskets, washers and ‘O’ rings to service Amal carburettors.

376/208

For Amal 376 Monobloc series. Packaged set of gaskets, washers and O rings to service Amal carburettors.

389/208

For Amal 389 Monobloc series. Packaged set of gaskets, washers and ‘O’ rings to service Amal carburettors.

622/208

Packaged set of gaskets, washers and ‘O’ rings to service Mk1 Amal carburettors.
Buy Online

2622/144

Packaged set of gaskets, washers and ‘O’ rings to service Mk2 Amal carburettors.

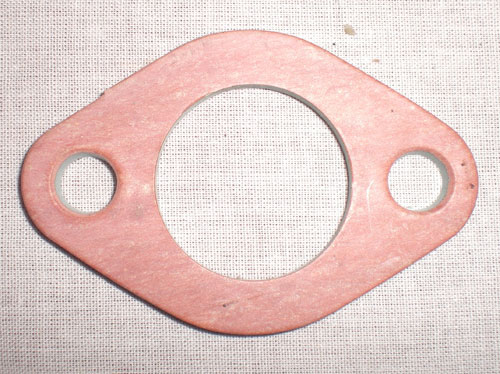

Carburetter Flange Insulator Gasket

Part #

Description

3074/24

24mm x 1/8″ Thick

3074/26

26mm x 1/8″ Thick

3074/28

28mm x 1/8″ Thick

3074/30

30mm x 1/8″ Thick

3074/32

32mm x 1/8″ Thick

Banjos



Part #

Description

(Click To Enlarge)
376/090Banjo, Single, threaded(5/16″ Tubing)

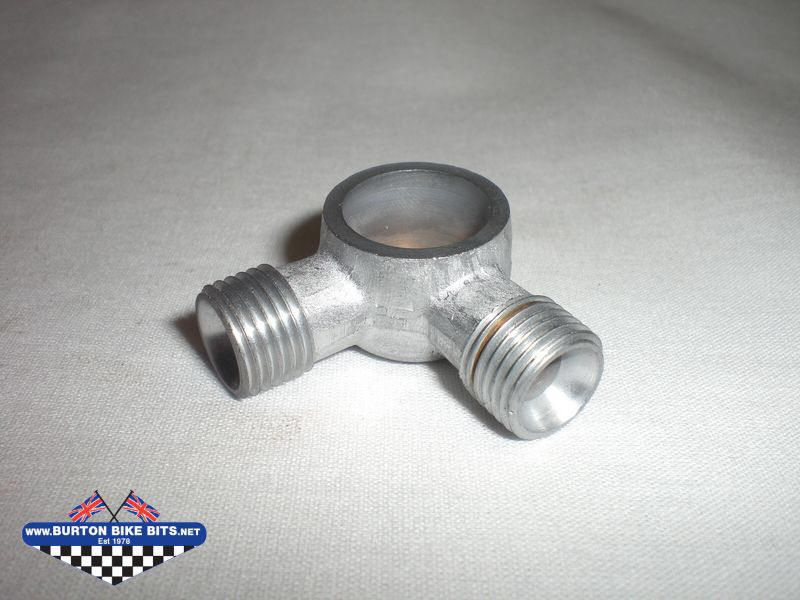

376/108Banjo, Double, 90 deg., Threaded
376/139Banjo, Double, 150 deg., push-on (5/16″ Tubing)Double Banjo
376/410Banjo, Double, 55 deg., push-on (5/16″ Tubing)
376/419Banjo, Double, 180 deg., push-on (1/4″ Tubing)
376/097Banjo, Single, push-on (1/4″ Tubing)
42-8075AFits A7/A10 fuel tap
42-8075BBanjo, Single, for BSA fuel tap

Other Amal Parts

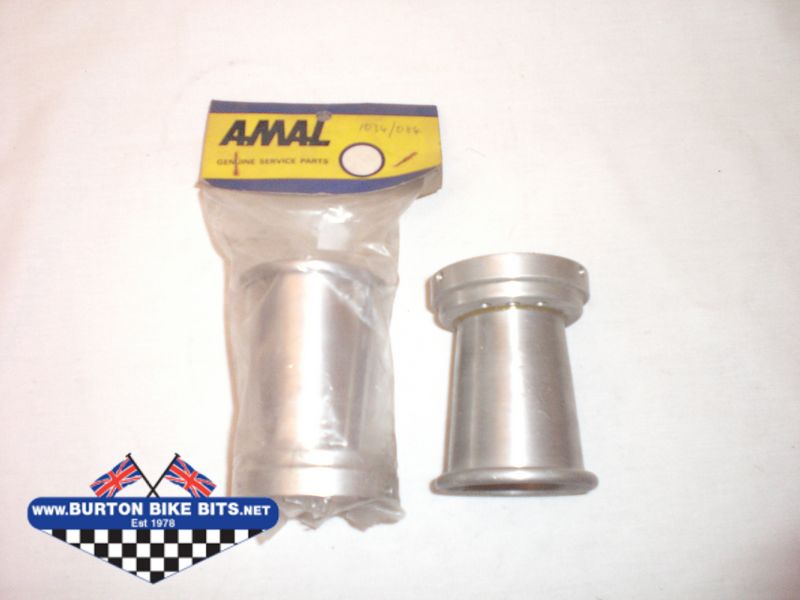

1034/084 Velocity Stack





Amal Carb, Carburettor, Carburetor or Carburetter
